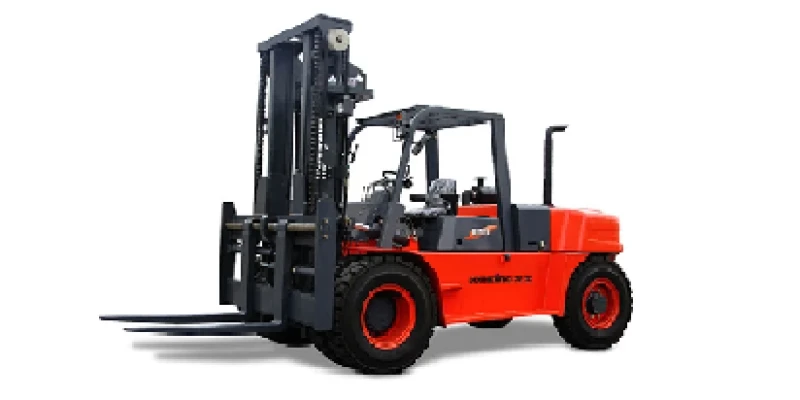

Lonking 16 Ton
Sejarah Lonking
Lonking Holdings Limited, sebagai salah satu dari 50 perusahaan permesinan teknik teratas dunia, merupakan salah satu perusahaan terkemuka dalam industri permesinan konstruksi.
Lonking didirikan pada tahun 1993, dan skalanya terus berkembang. Empat produk utama Perusahaan, termasuk loader, excavator, forklift, road roller, dan skid steer loader, telah membuat kemajuan yang tersinkronisasi dan komponen serta suku cadang utama telah dikembangkan secara terkoordinasi. Lonking selalu dipercaya oleh sebagian besar pengguna dengan produk berkualitas yang andal dan reputasi bisnis yang baik.
Main Specification
| Type | No. | Item | Code | Unit | Data | Identification | 1.01 | Manufacturer | LONKING |
|---|---|---|---|---|---|
| 1.02 | Model | LG160DT(A) | |||
| 1.03 | Power type | Diesel | |||
| 1.04 | Rated capacity | Q | kg | 16000 | |
| 1.05 | Load center | J | mm | 900 | |
| Dimensions | 2.01 | STD Max height (with backrest) | mm | 5425 | |
| 2.02 | STD Max lifting height | h1 | mm | 3500 | |
| 2.03 | Overhead guard height | h4 | mm | 3566 | |
| 2.04 | Overall length (with fork) | L1 | mm | 7410 | |
| 2.05 | Wheelbase | L2 | mm | 3800 | |
| 2.06 | Front overhang | L3 | mm | 968 | |
| 2.07 | Rear overhang | L4 | mm | 840 | |
| 2.08 | Min.ground clearance (Frame/Mast) | m1/m2 | mm | 330/330 | |
| 2.09 | Overall width | W1 | mm | 2752 | |
| 2.10 | Adjusting range of fork (outside) | mm | 580-2214 | ||
| 2.11 | STD Fork size (L5*W*T) | mm | 1820×220×100 | ||
| 2.12 | Front wheel tread | S | mm | 1895 | |
| 2.13 | Rear wheel tread | P | mm | 2120 | |
| 2.14 | Min.turning radius | R1 | mm | 5300 | |
| 2.15 | Min aisle width for pallet 1000×1200,crossways | mm | 8288 | ||
| 2.16 | Min aisle width for pallet 800×1200,lengthways | mm | 8288 | ||
| Tires | 3.01 | Wheels number, front/rear (X=driven wheels) | X=4/2 | ||
| 3.02 | Tires type | Pneumatic | |||
| 3.03 | Tires size, front | 12.00-24-20PR | |||
| 3.04 | Tires size, rear | 12.00-24-20PR | |||
| Other Details | 4.01 | Max.traveling speed, loaded/unloaded | km/h | 22/27 | |
| 4.02 | Max.lifting speed, loaded/unloaded | mm/s | 280/300 | ||
| 4.03 | Lowering speed, loaded/unloaded | mm/s | 410/320 | ||
| 4.04 | Max.traction, loaded | KN | 110 | ||
| 4.05 | Max.gradient, loaded/unloaded | % | 20 | ||
| 4.06 | STD operating weight (with oil & water) | kg | 23500 | ||
| 4.07 | Axles loading,front/rear (loaded) | kg | 36500/3000 | ||
| 4.08 | Axles loading,front/rear (unloaded) | kg | 10500/13000 | ||
| 4.09 | Service brake | Wet brake-pedal | |||
| 4.10 | Parking brake | Hydraulic release-push-button | |||
| 4.11 | Drive type | Electrical gearbox | |||
| 4.12 | Number of gear (front/rear) | 2/1 | |||
| 4.13 | Fuel tank capacity | L | 300 | ||
| 4.14 | Battery votage/capacity | V/Ah | 2×12/120 |
